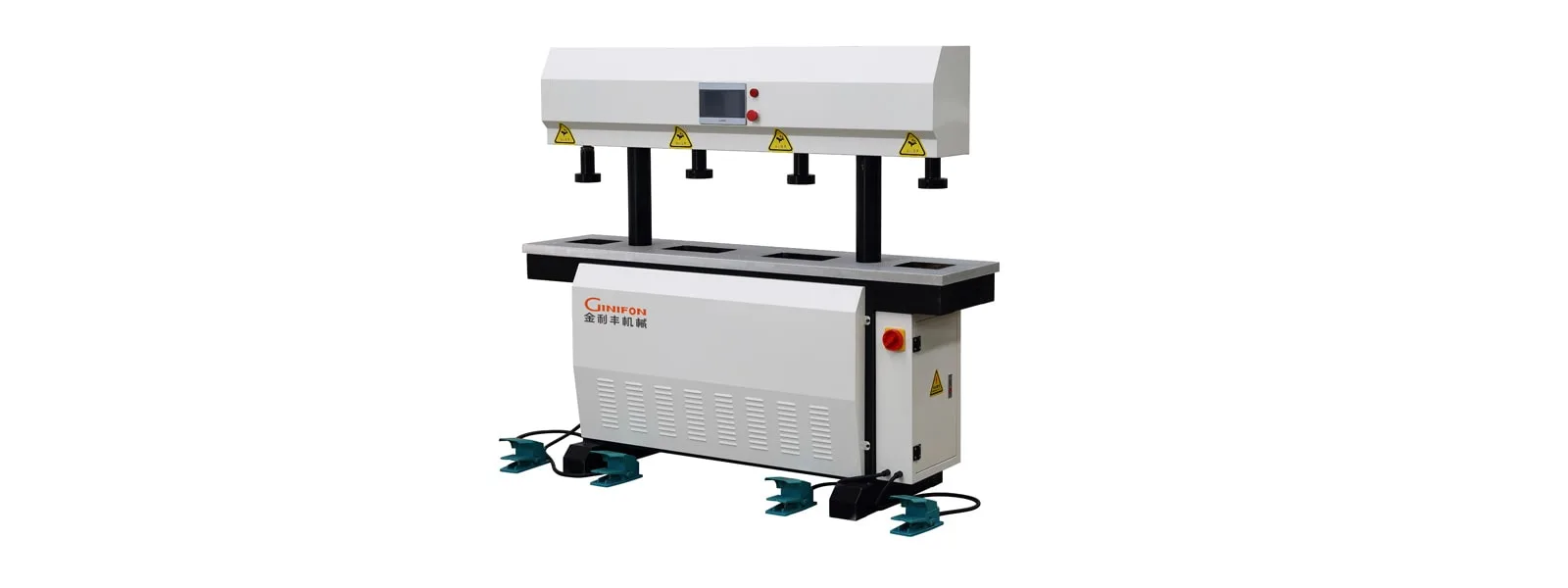

1. Four work stations function independently with separate foot pedals.
2. The smart locking design makes the mould bases installation simple.
3. Adopts an advanced and reliable mechanical design, to solve the problem of moulds damage cause by punching unbalanced.
4. Strong hydraulic motor power, can punch aluminium profile up to 5mm thickness.
5. LED lighting creates a clear vision.
| Technical Parameters | |
| Motor Power | 3.75Kw |
| Worktable Size | 1880*420*300mm |
| Maximum Pressure | 8000Mpa |
| Cylinder Stroke | 4*63 |
| Cylinder Stroke | 60mm |
| Machine Dimensions (L*W*H) | 1880*600*1500 |
| Maximum Moulds Installation Size | 370*320 |
