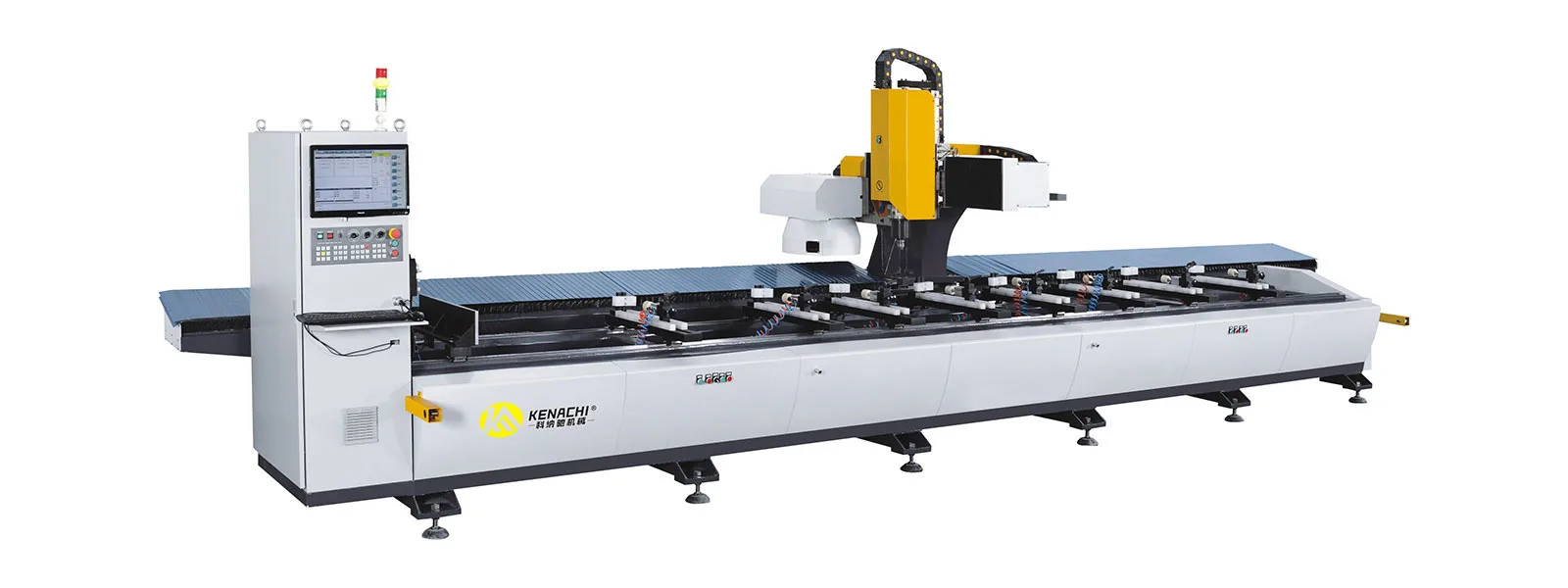

MC6500XXS





Suitable for processing various aluminum alloy profiles such as installation holes, water slots, lock holes, shaped holes, etc;
The processing of all holes and slots on the same processing surface can be completed with one card loading, with high working efficiency;
Operating system: German PA/Siemens CNC control system is adopted;
The working head adopts a high-power air-cooled high-speed spindle imported from ltaly to complete various drilling and drilling processes with high quality;
With 8-station mobile rotating tool library, automatic tool change;
Automatic lubrication system: intermittent automatic lubrication at the center of the movement mechanism;
Tool cooling mode: oil mist cooling system is adopted;
Two sets of end positioning devices: use a flap type positioning baffle for X-direction positioning, which can be divided into front and rear dual station processing;
Tool setting function: the spindle tool automatically adjusts the tool length and updates it accordingly to the program;
Safety protection: splash prevention, work warning, work area protection, etc.

Inquiry

Technical parameters
Item		KNC-6500X	KNC-6500XS
Number of motion axes		4 pcs	5 pcs
Processing range	X-axis	6500 mm	6500 mm
	Y-axis	600 mm	600 mm
	Z-axis	400 mm	400 mm
	A-axis(machining at any angle)	一	-10°～190°
Machining accuracy	Location	±0.1mm	±0.1mm
	Repeat positioning	±0.05mm	±0.05mm
	Verticality	0.1mm/100mm	0.1mm/100mm
	Surface roughness of cutting surface	Ra1.6um	Ra1.6um
Feed speed	X-axis	120m/min	120m/min
	Y-axis	50m/min	50m/min
	Z-axis	30m/min	30m/min
Tool change time		1.5m/min	1.5m/min
Tool magazine		Rotary 6-tool magazine	Rotary 6-tool magazine
Control system		PA/Siemens	PA/Siemens
Principal axis	Brand	HSD	HSD
	Power	9.6kw	9.6kw
	Rotational speed	24000rpm	24000rpm
	Brand	Yaskawa/Estun	Yaskawa/Estun
Servo motor	X-axis	4.4Kw	4.4Kw
	Y-axis	1.8Kw	1.8Kw
	Z-axis	1.8Kw	1.8Kw
	R(Tool maganine)	0.75Kw	0.75Kw
	A-axis	——	1Kw
Hilt		φ16 ISO30 ER25mm	φ16 ISO30 ER25mm
Pneumatic components		AirTac	AirTac
Electricalcomponents		Schneider	Schneider
Cable		Igus	Igus
Total power		18 Kw	19 Kw
Power Supply		380V 50HZ	380V 50HZ
Weight		3500kg	3950 kg
Overal dimensions(LWH)		800019002300mm	850028002500 mm
