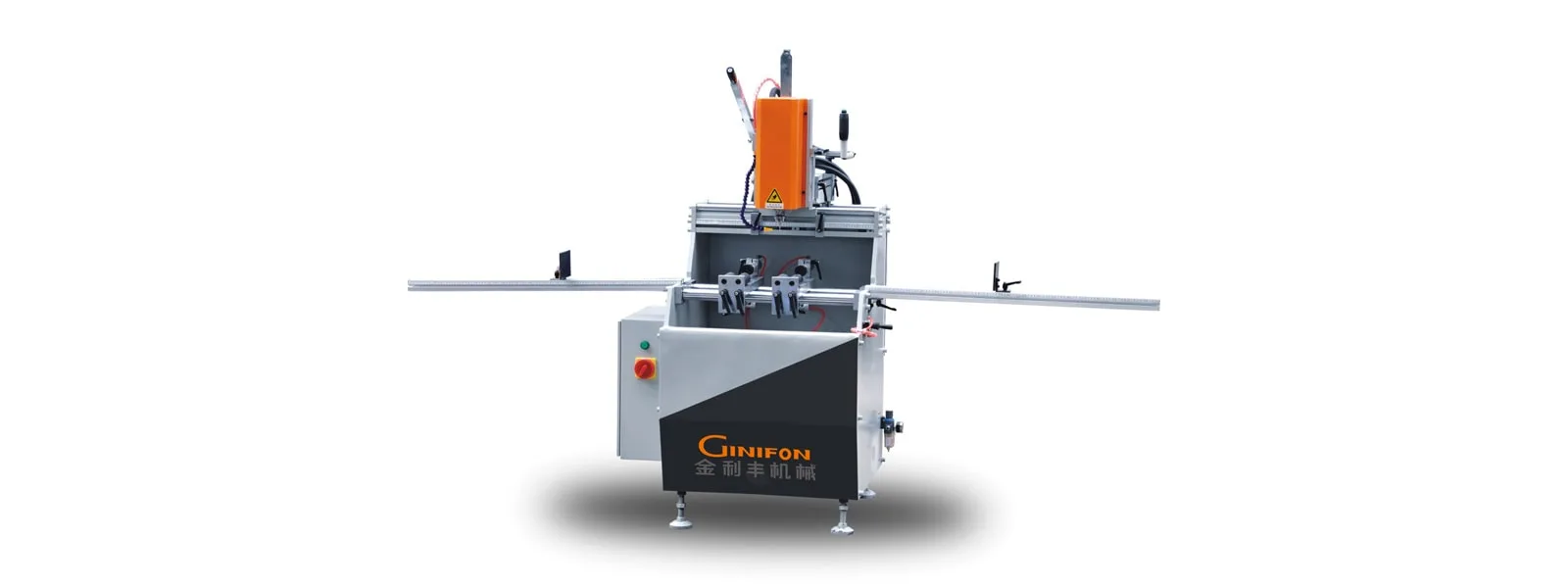

It is used to process through holes of various shapes in aluminum alloy profiles. The shape of the hole is copied to the workpiece using a template at a ratio of 1:1. Adjust the stopper on the left side of the end milling head and the positioning strip on the profiling bracket to mill rectangular holes. All kinds of power move on a linear motion axis, and the profiling needle can rotate freely, making it easy to operate, light and flexible. The start switch is installed on the operating handle, and the operating lever is equipped with joint bearings, making operation simple and convenient.
| Technical parameters | ||
| Item | KNC-893 | |
| Processing range | Maxmumleland ngnt moemensance ot end millng head | 260mm |
| Front and rear movement of end milling head | 130mm | |
| Upward and downward movement of end milling head | 100mm | |
| Workbench area(length *width) | 2.2KW | |
| Spindle power | Belt Drive | |
| Spindle mode | 2000r/min | |
| Spindle speed | φ8mm | |
| Milling cutter diameter(maximum) | φ5mm | |
| Milling cutter diameter(minimum) | 380V 50HZ | |
| Weight | 165kg | |
| Overall dimensions (length*width*height) | 640*660*1400mm | |
