J883FD





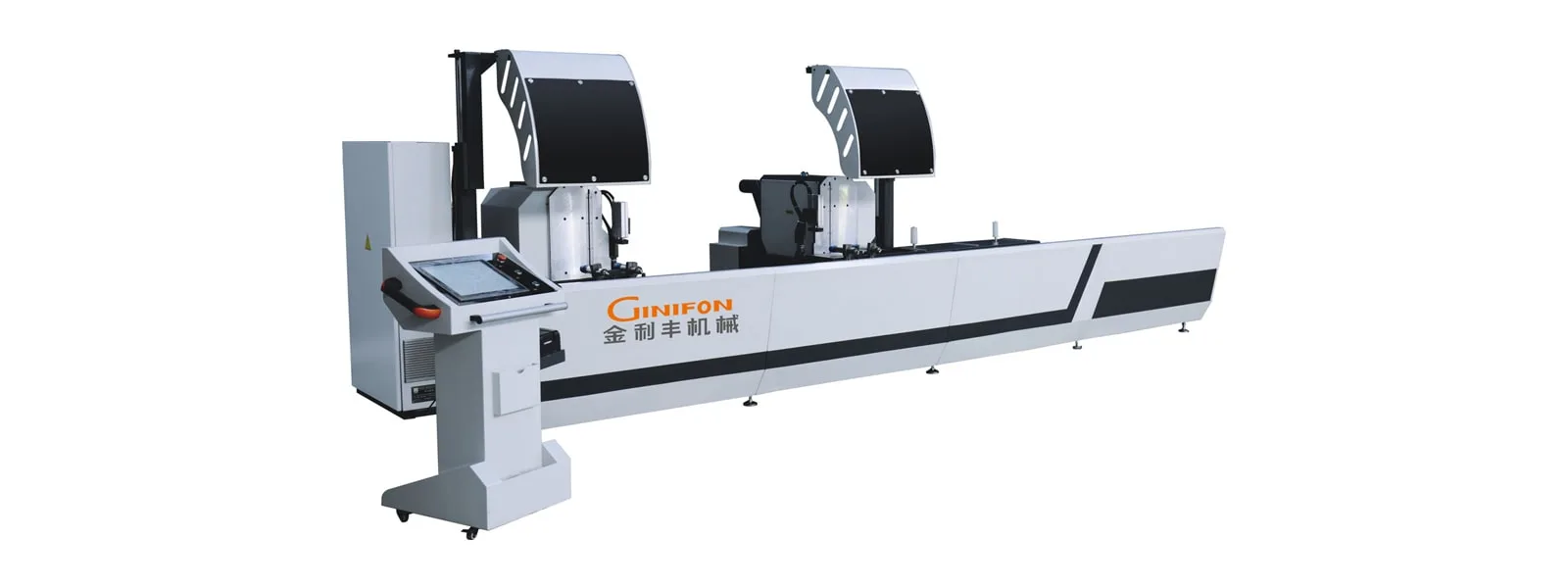

Fully automatic CNC double head saw with arbitrary angle, suitable for cutting various aluminum profiles in angle and length. This machine uses a 3KW motor to directly install the saw blade, and imported linear guide rail transmission to ensure small vibration during cutting and smooth sawing surface. The imported damping cylinder is used for feeding, which ensures stable feeding and fast retraction speed. The angle control of this machine uses an imported absolute value motor to ensure the accuracy of swing angle positioning. The length positioning uses an imported servo control system in conjunction with an imported reducer, which is fast and accurate in positioning. It has an automatic feeding function and comes with a cutting optimization interface.

Inquiry

Technical parameters
Cutting range	420～6000mm	Working air pressure	0.6～0.8MPa	Cable	Igus
Sawing range：width*height	190*190mm	Table rotation angle	≦±0.05mm	Pneumabic components	Airtac
Swing angle of saw blade	Any angle	Control system	Omron	Eectrical components	Schneider
Motor power	3KW	Servo motor	Fujii/Yaskawa	Weight	1700kg
Motor speed	2840r/min	Reducer	Shinpo	Overal dimenslons (LWH)	650010001650mm
Saw blade size	φ60030144T	Touch screen	Weintek Touch Panel

J883FD
