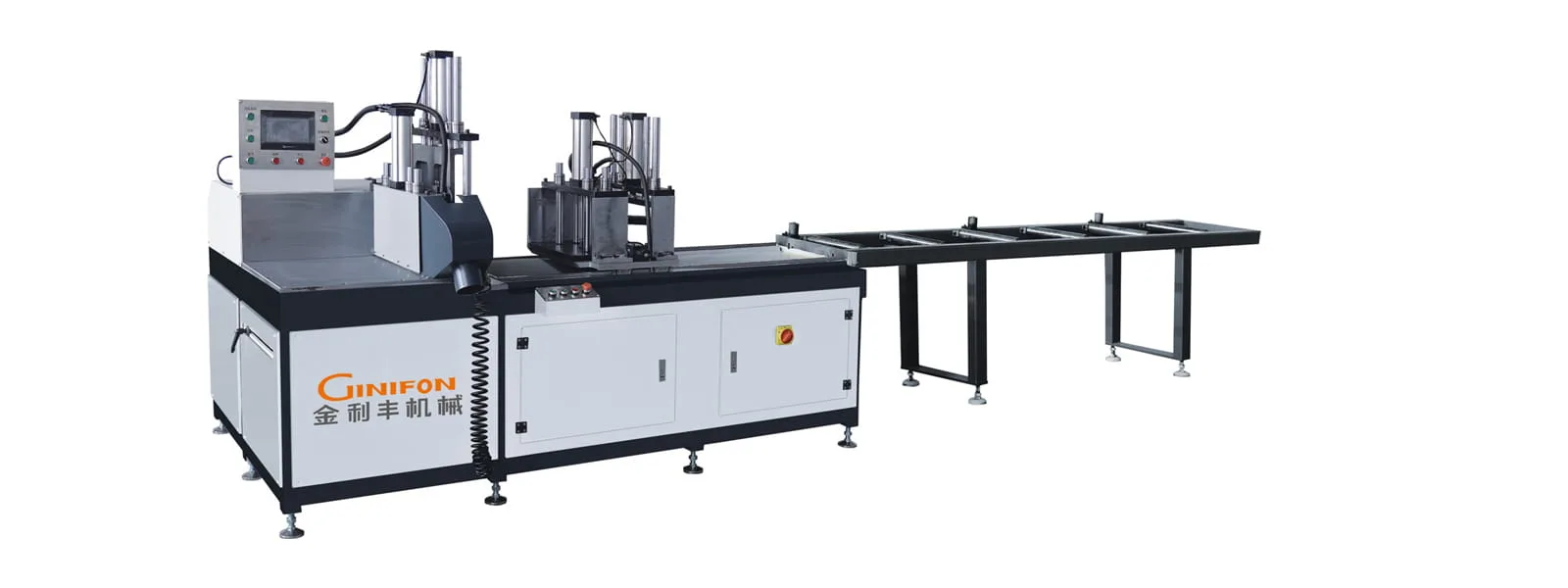

It is mainly used for 90°automatic feeding and cutting of aluminum alloy curtain wall materials and window materials. It uses a carbide saw blade, with an outer diameter of up to 600mm. It has high linear speed, and high processing accuracy. This machine tool adopts an industrial control system with high positioning accuracy, and the repeated positioning accuracy can reach ±0.1mm. The straight-out motor is used for cutting. With high cutting accuracy and good stability. Fully automatic feeding and high production efficiency.
| Technical parameters | |||||||
| Cutting range | 5～1500mm | Working air pressure | 0.6～0.8MPa | Cable | Igus | ||
| Sawing range: width *height | 400*200mm | Saw blade angle | 90° | Pneumatic components | Airtac | ||
| Motor power | 5.8KW | Control system | Omron | Electrical components | Schneider | ||
| Motor speed | 2850r/min | Servo motor | Fujii/Yaskawa | Weight | 1500kg | ||
| Saw blade size | φ600*30*144T | Touch screen | Weintek Touch Panel | Overall dimensions(L*W*H) | 5500*1400*1400mm | ||
